Specifications

Resolution

600 dpi/24 dots per mm

Memory

1GB SDRAM memory

2GB linear Flash memory

Maximum Print Width

4.09 in./104 mm

Maximum Print Speed

14 ips/356 mm per second

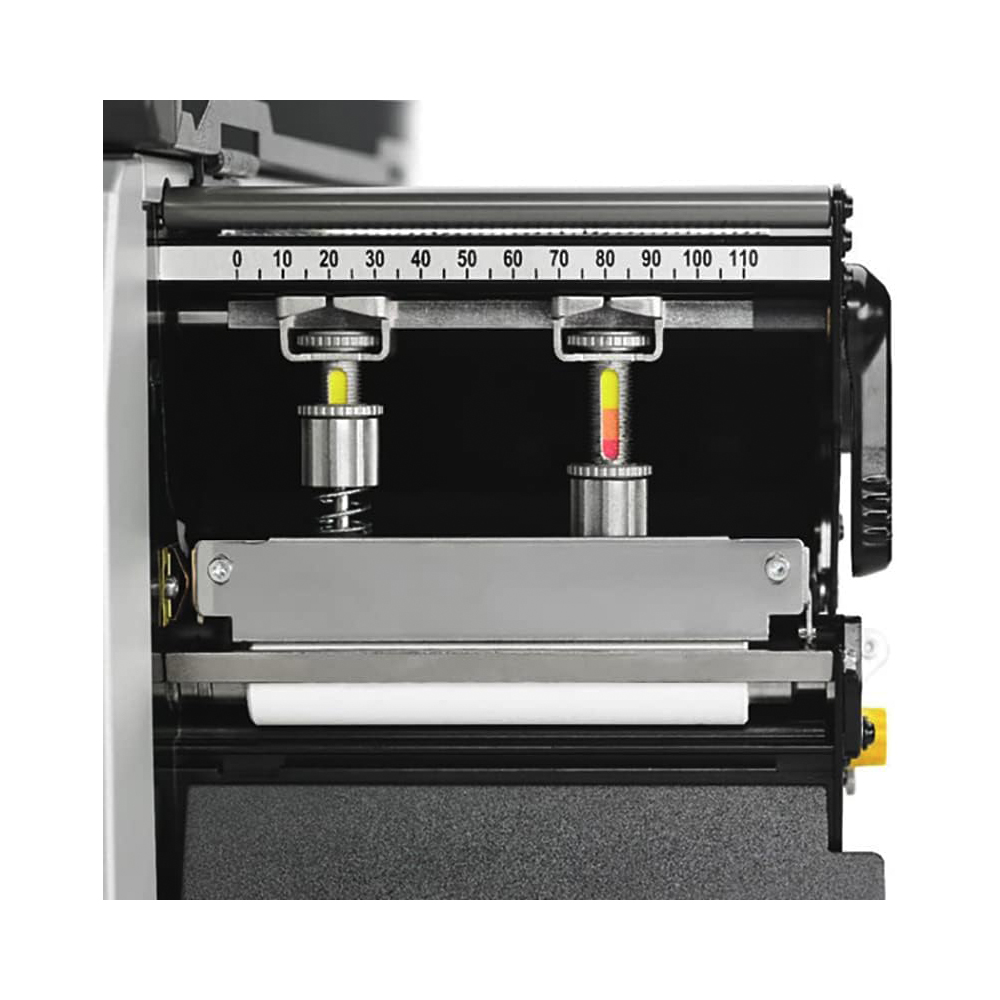

Media Sensors

Adjustable dual media sensors: transmissive and reflective

Maximum Continuous Print Length

600 dpi: 30″/762 mm



Media Characteristics

Maximum Media Width

1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter

1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind

Maximum Media Roll Size

8.0″/203 mm O.D on a 3.0″/76 mm I.D. core

Media Thickness

0.0023″/0.058 mm to 0.010″/0.25 mm

Media Types

Continuous, die-cut, notch, black mark



Barcode Symbologies

Linear barcodes

Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

2D Barcodes

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec



Ribbon Characteristics

Standard Length

1476 ft./450 M

Width

2.00 in./51 mm to 4.33 in./110 mm

Core

1.0 in./25 mm I.D

Communication

USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth

Dimension/ Weight

19.88 in. L x 10.56 in. W x 15.58 in. H/ 50 lbs
